Gaz Arttırıcılar

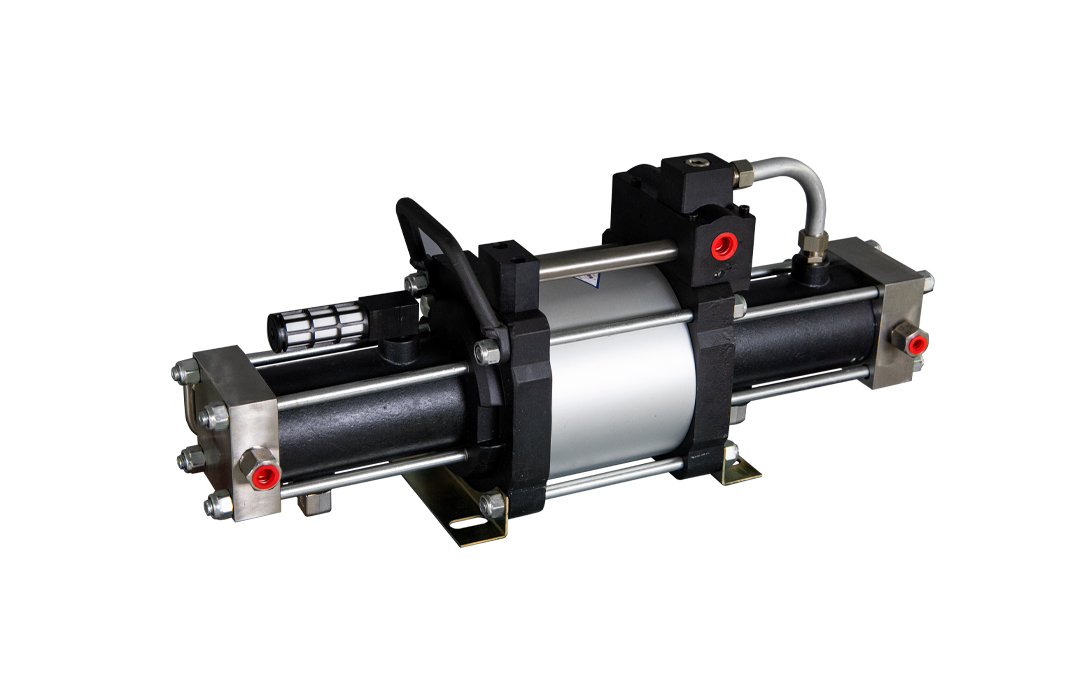

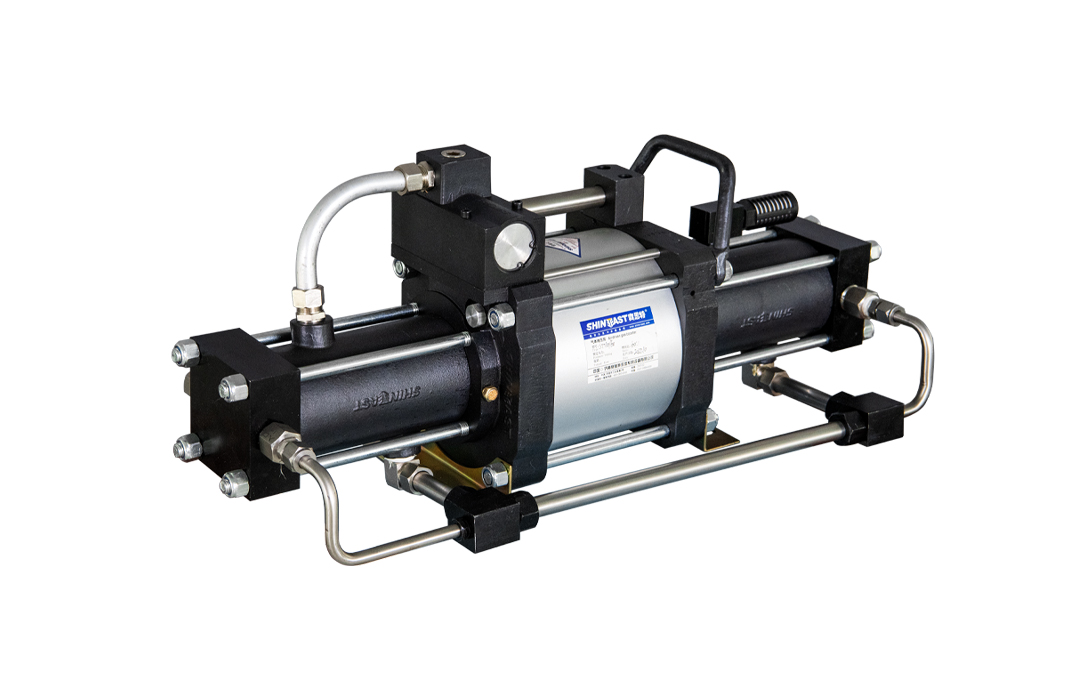

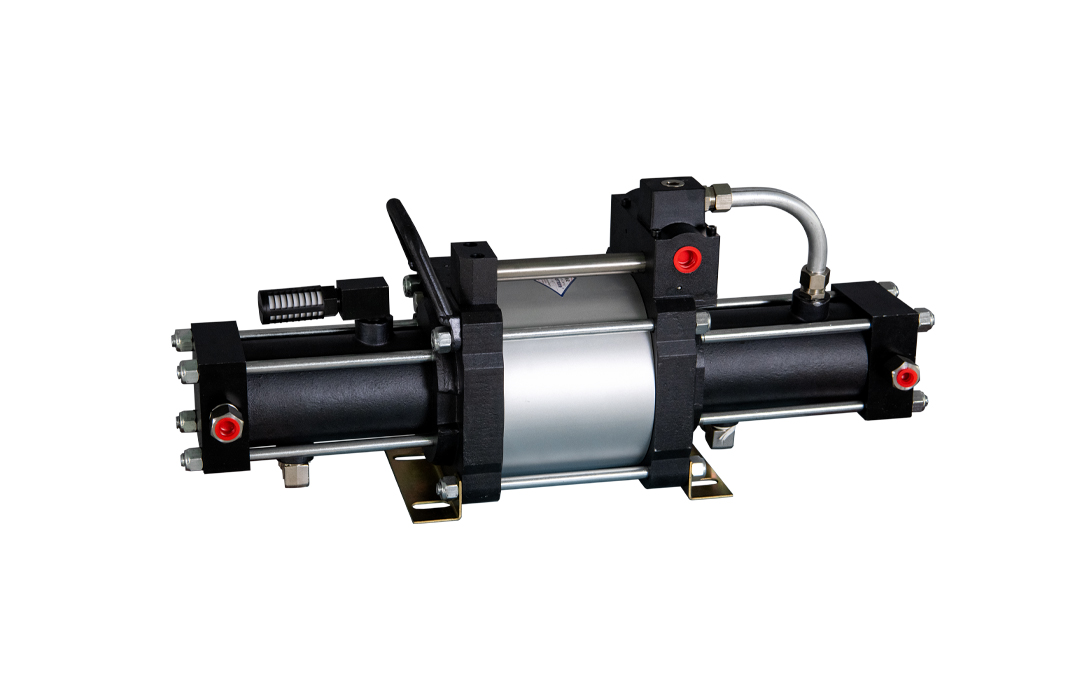

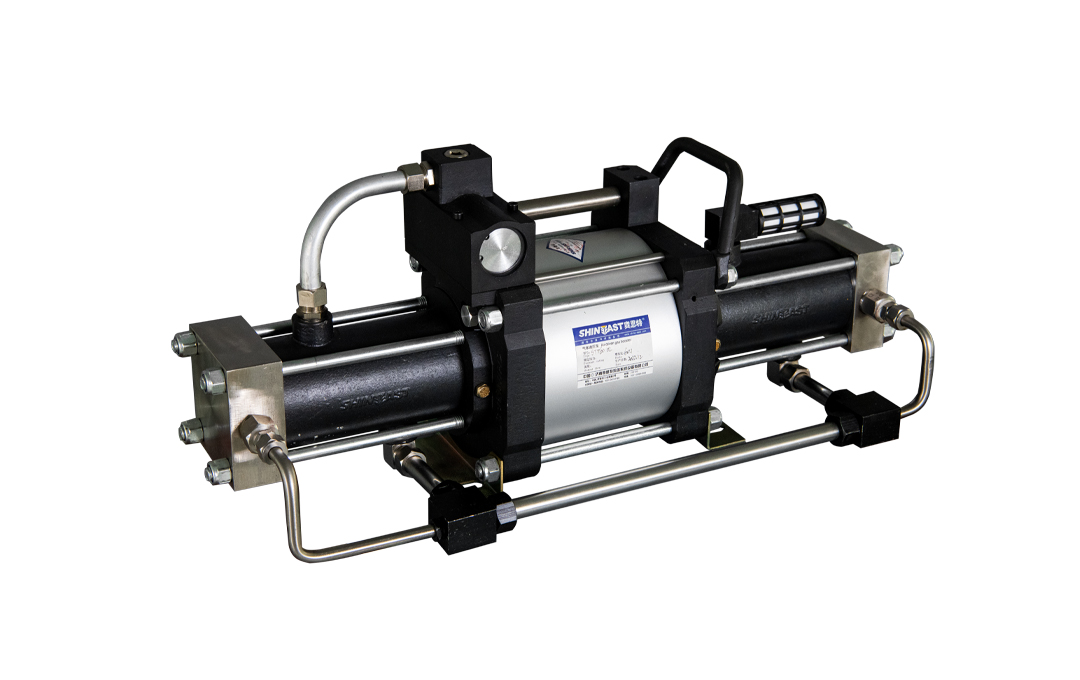

STT serisi Gaz Hidroforları, çift etkili, çift kademeli, tek havalı tahrik kafasına sahip modellerdir. Gaz giriş basıncı 1 bar (14,5 psi) ile 10 bar (145 psi) arasındadır. 80MPa'ya kadar basınç sağlayın.
Technical Parameters of STT Series Gas Boosters:
Type | Pressure ratio | Min. gas inlet pressure PA（bar） | Max. gas Inlet pressure PA（bar） | Max.gas outlet pressure PB（bar） | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet(NPT tread) | Max. flow at air drive pressure of 6 bar (L/min) |
STT25 | 25:1 | 0.1 | 10 | 200 | 25XPL+3.5XPA | 1/4/ 1/4 | |
STT40 | 40:1 | 0.1 | 10 | 320 | 40XPL+ 6XPA | 1/4/ 1/4 | 124(at PA of 8 bar ) |
STT10/60 | 10:1/60:1 | 0.1 | 10 | 480 | 60XPL+6X PA | 1/4/ 1/4 | 84(at PA of 8 bar ) |
STT25/60 | 25:1/60:1 | 10 | 25 | 480 | 60XPL+2.5XPA | 1/4/ 1/4 | 80(at PA of 15 bar ) |
STT100 | 100:1 | 0.1 | 10 | 800 | 100XPL+10XPA | 3/8/ M14X1.5 | 63(at PA of 8 bar ) |
Note: PL: air drive pressure PA: gas inlet pressure PB: gas outlet pressure
